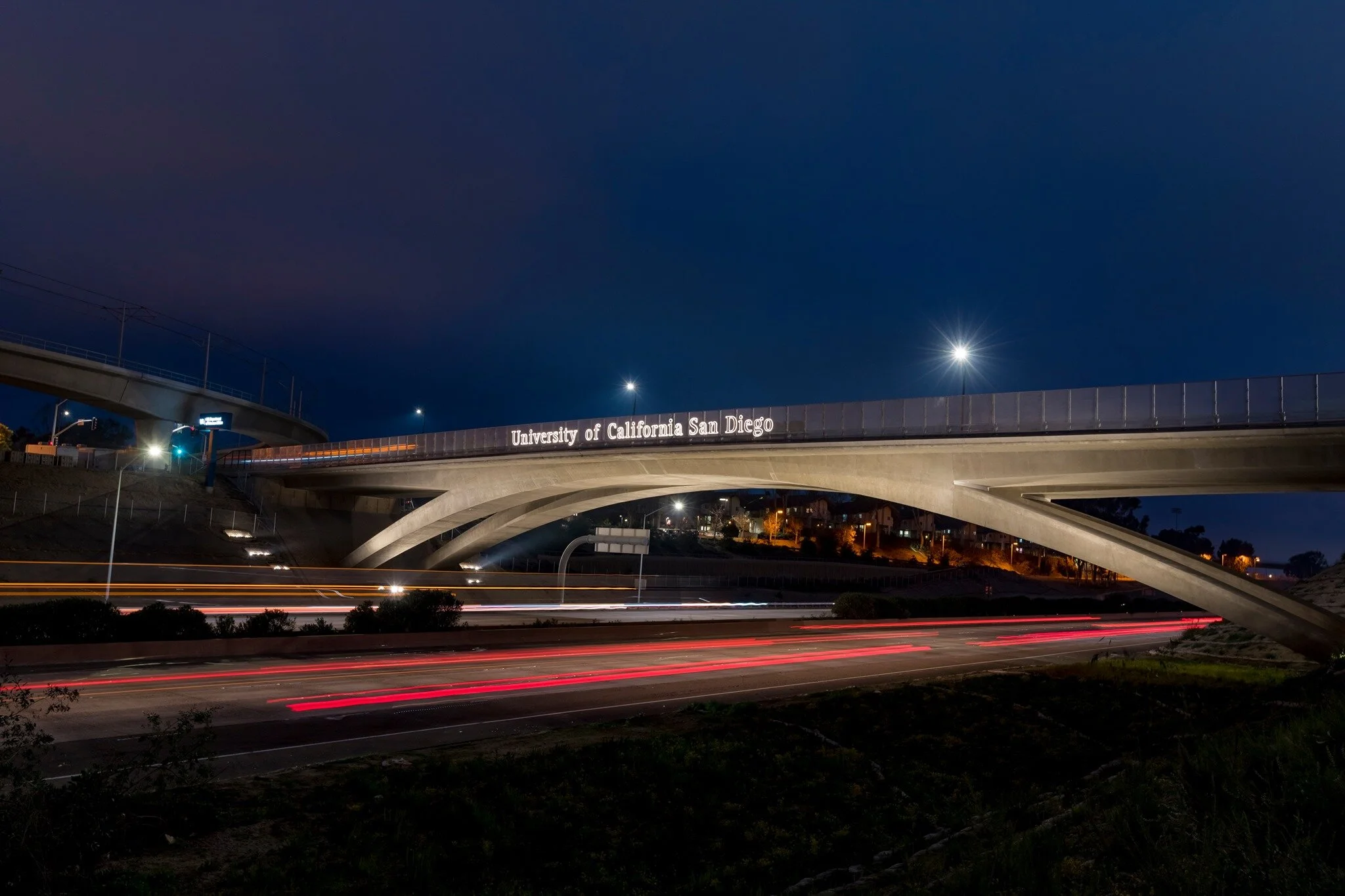

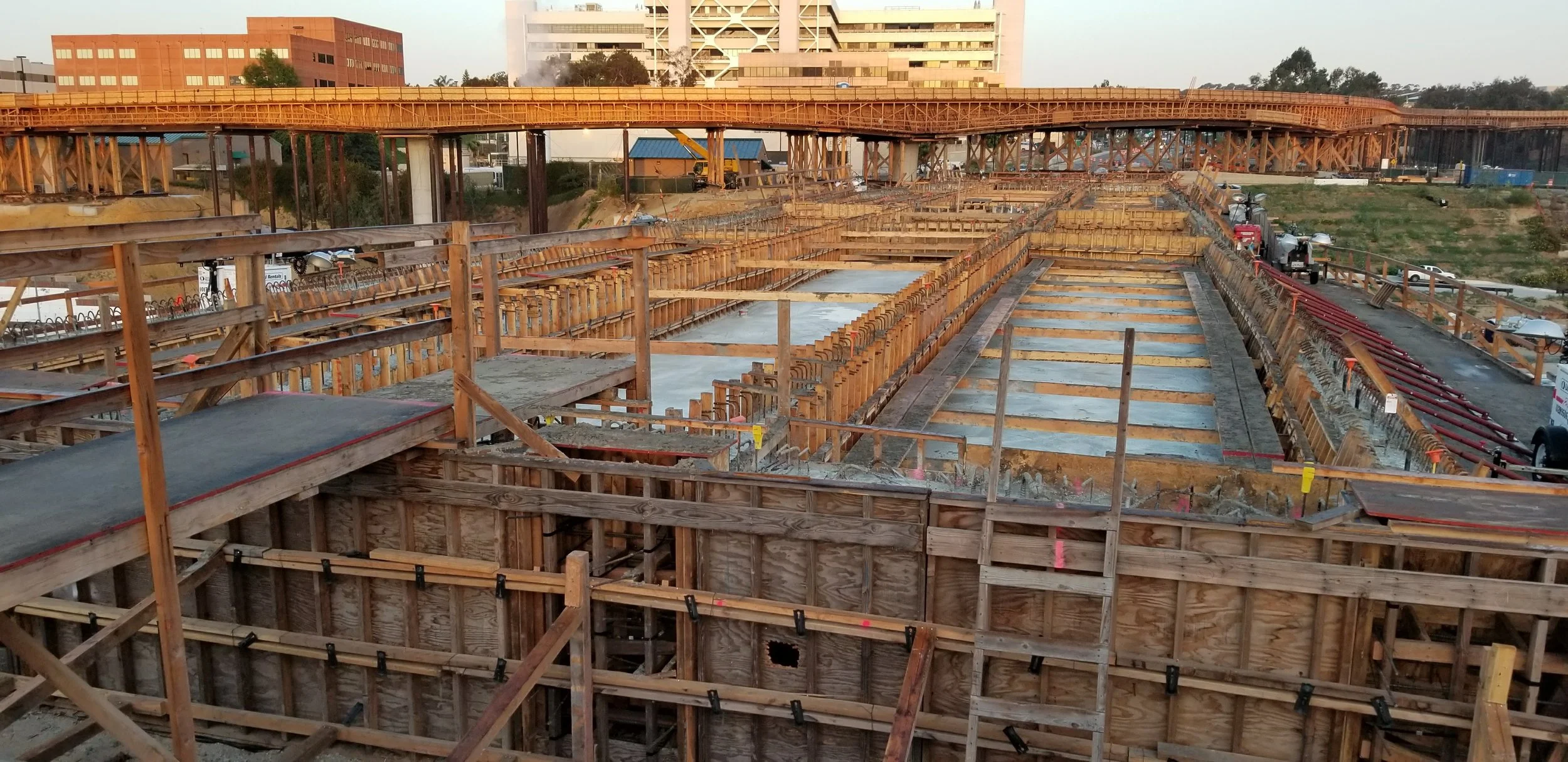

Gilman Bridge Underground and Duct bank

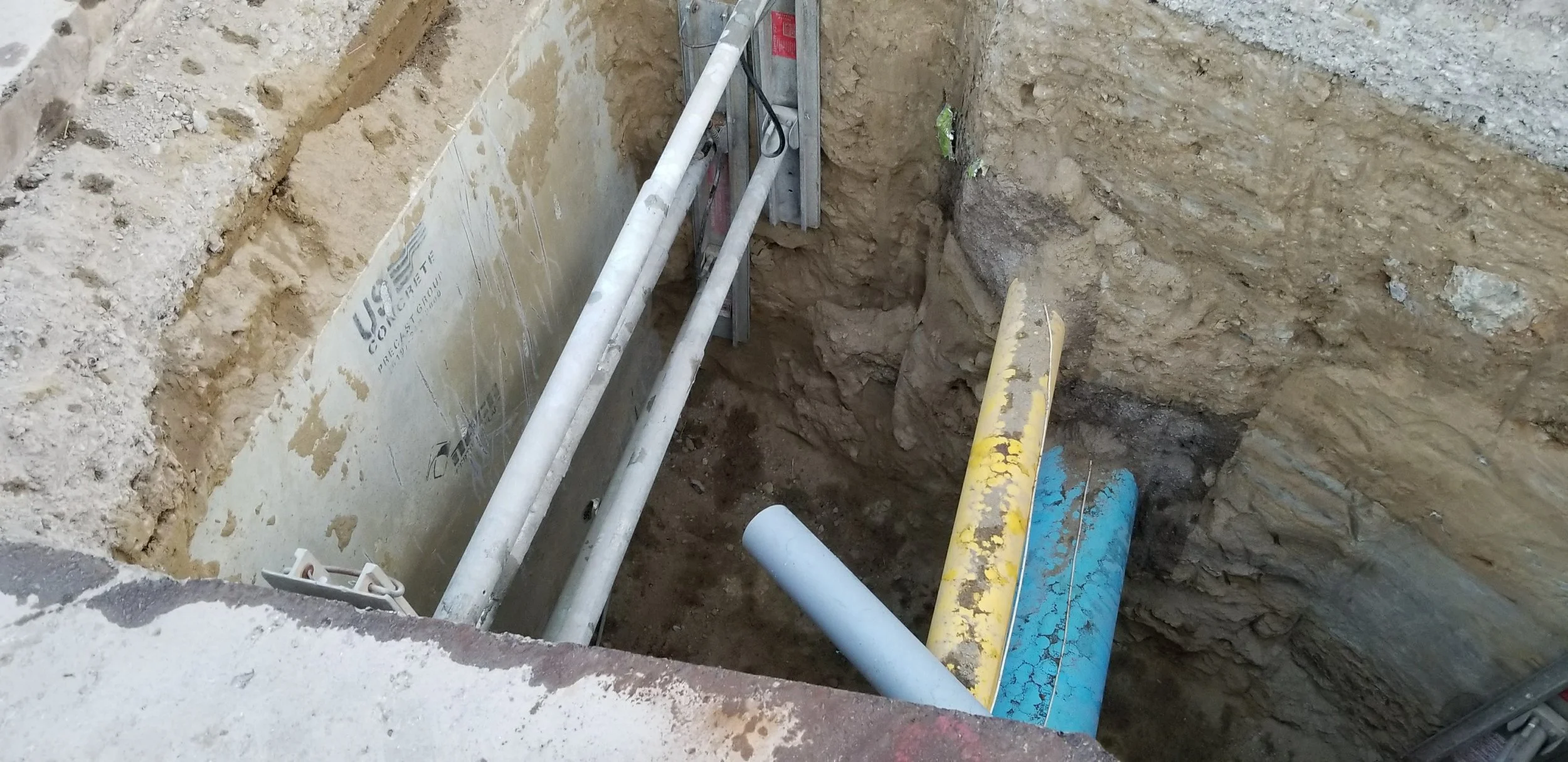

Install electrical and telecommunication lines in Medical Center Drive and the new Gilman Bridge that spans over Interstate 5. Challenges included excavation and installation around numerous existing utilities, and coordination with the bridge construction crews to install conduit and duct banks in the bridge.
We have many highly experienced underground installation crews that have been involved in numerous challenging pipeline projects in Southern California.
Mid-Coast Corridor Transit Project
The Mid-Coast Corridor Transit Project will extend the Trolley Blue Line service from the Santa Fe Depot in Downtown San Diego north to the University City community, serving major activity centers such as Old Town, the University of California, San Diego (UCSD), and Westfield UTC.
The Trolley extension route – known as the Locally Preferred Alternative (LPA) – was approved by the SANDAG Board in July 2010. It begins just north of the Old Town Transit Center and travels in existing railroad right-of-way and alongside Interstate 5 to serve UCSD and University City. The extension will serve nine new stations: Tecolote Road, Clairemont Drive, Balboa Avenue, Nobel Drive, VA Medical Center, Pepper Canyon (serving UCSD west campus), Voigt Drive (serving UCSD east campus), Executive Drive, and the terminus station at the Westfield UTC transit center.

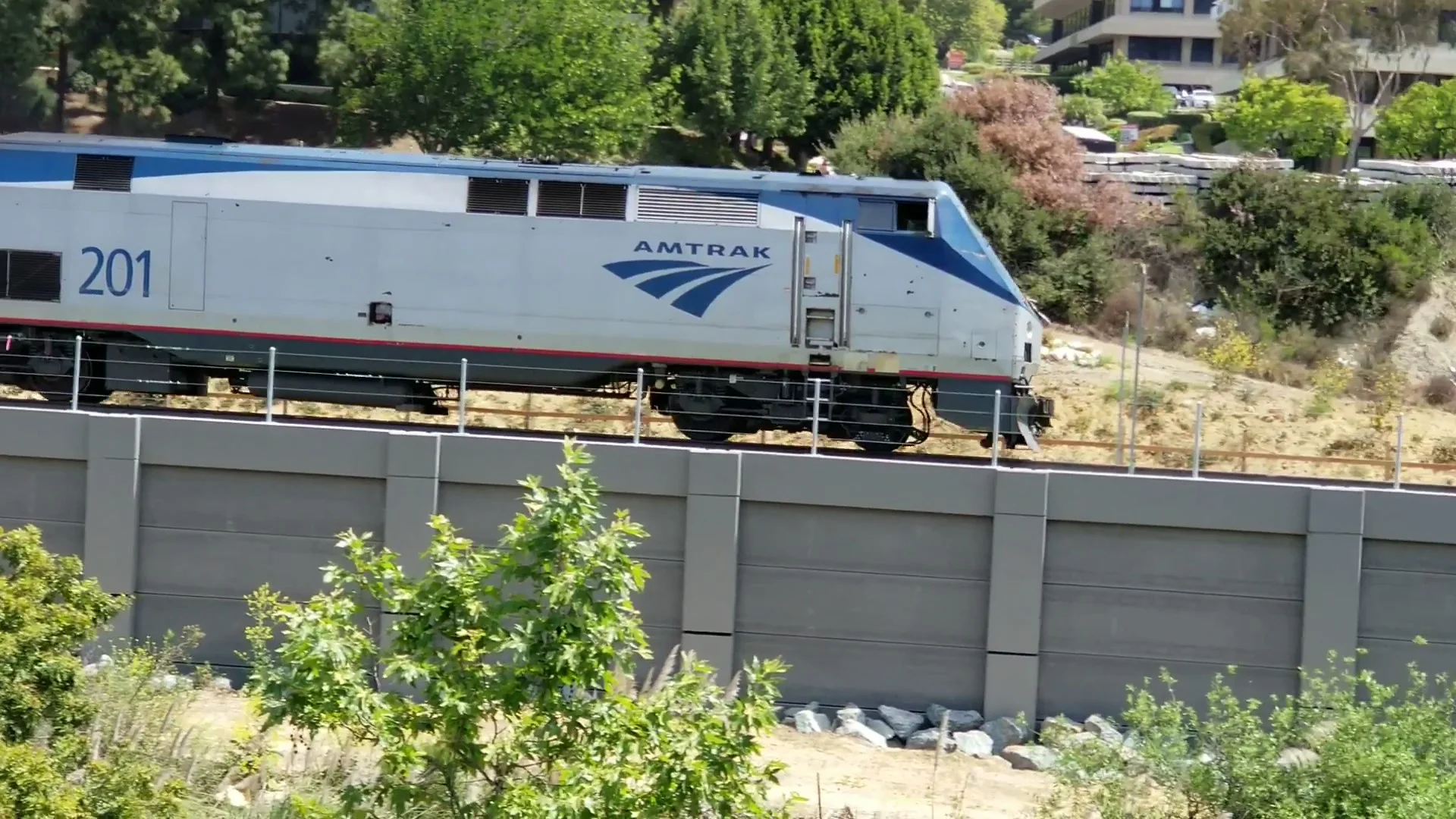

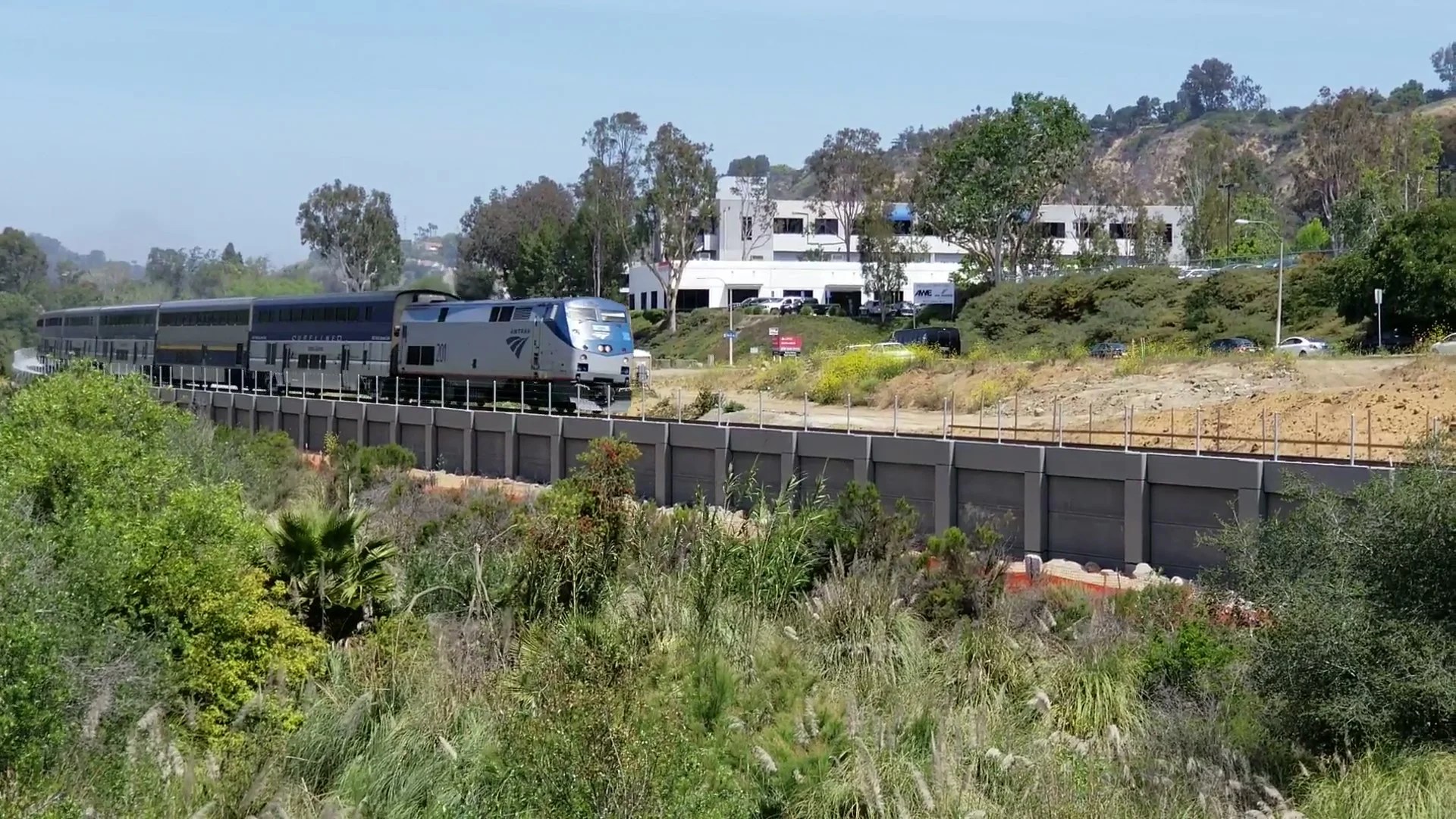

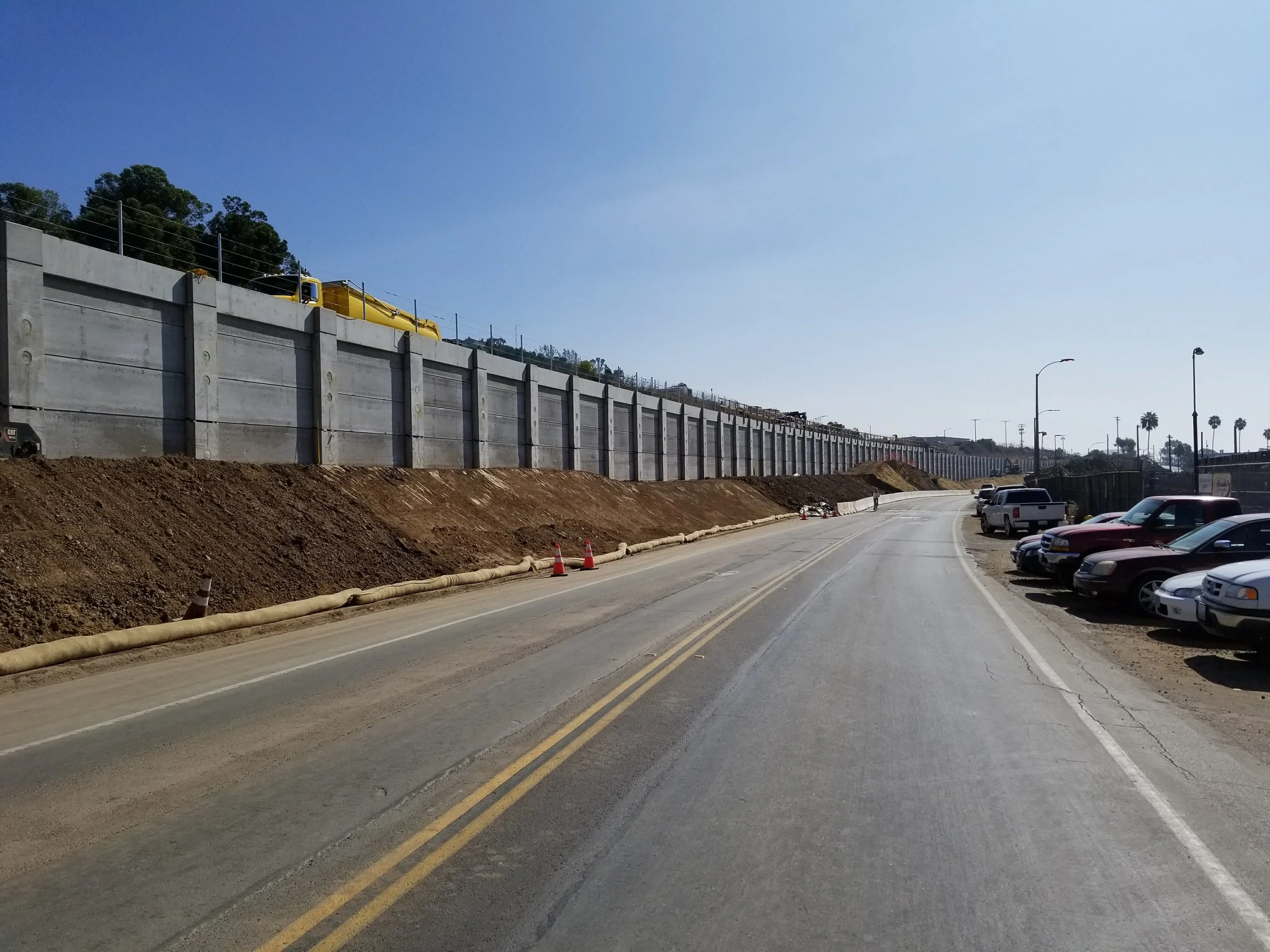

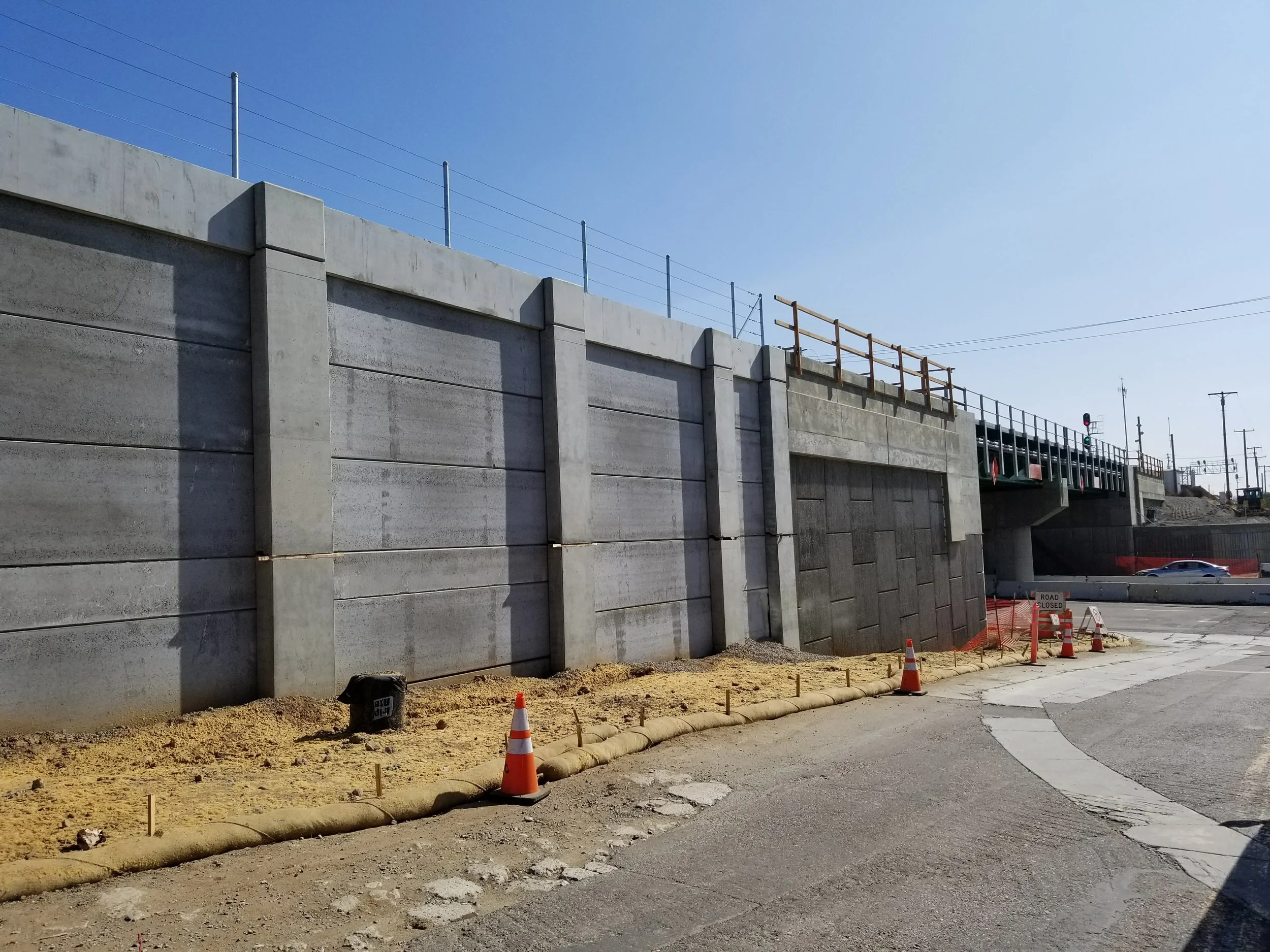

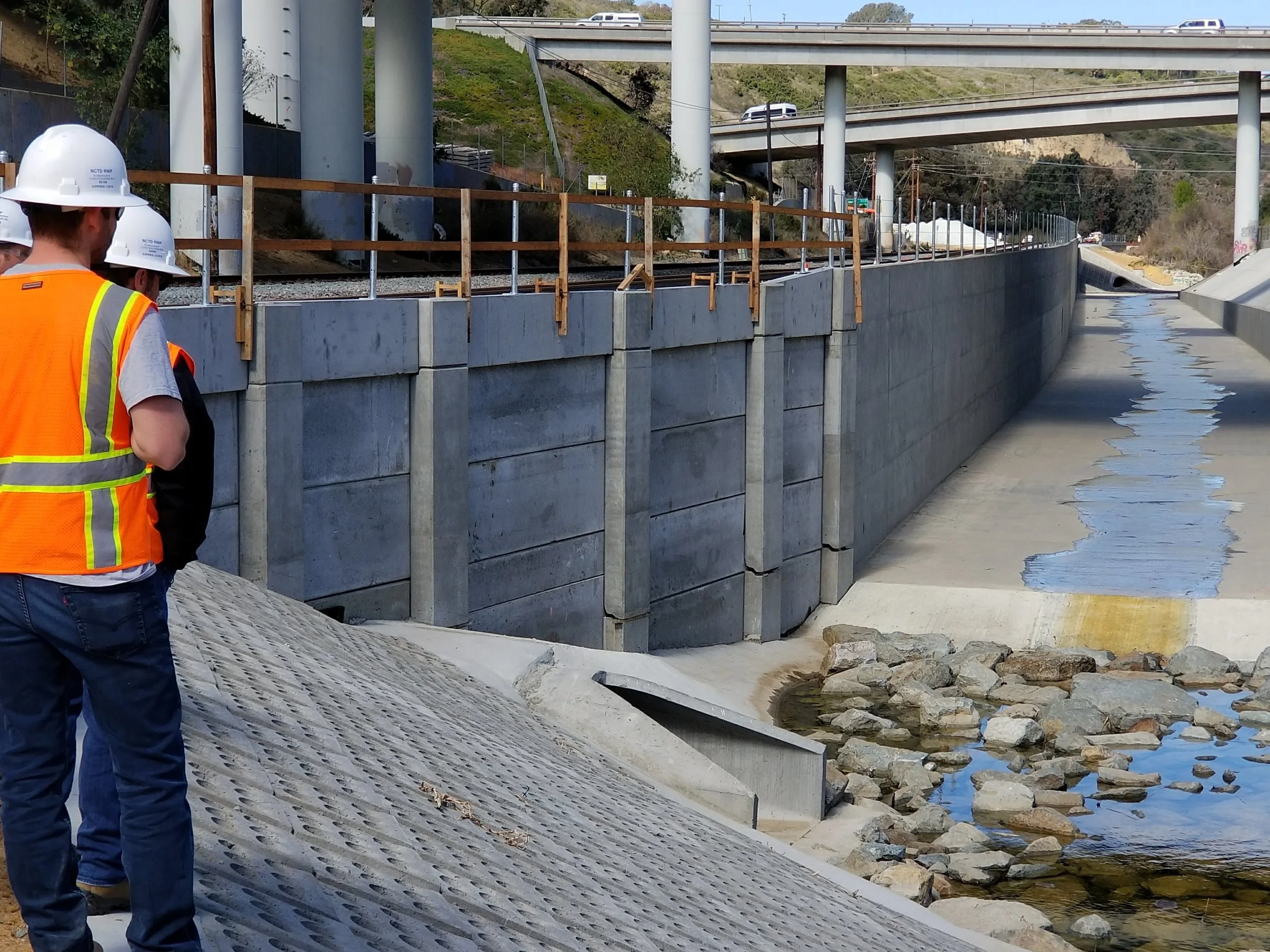

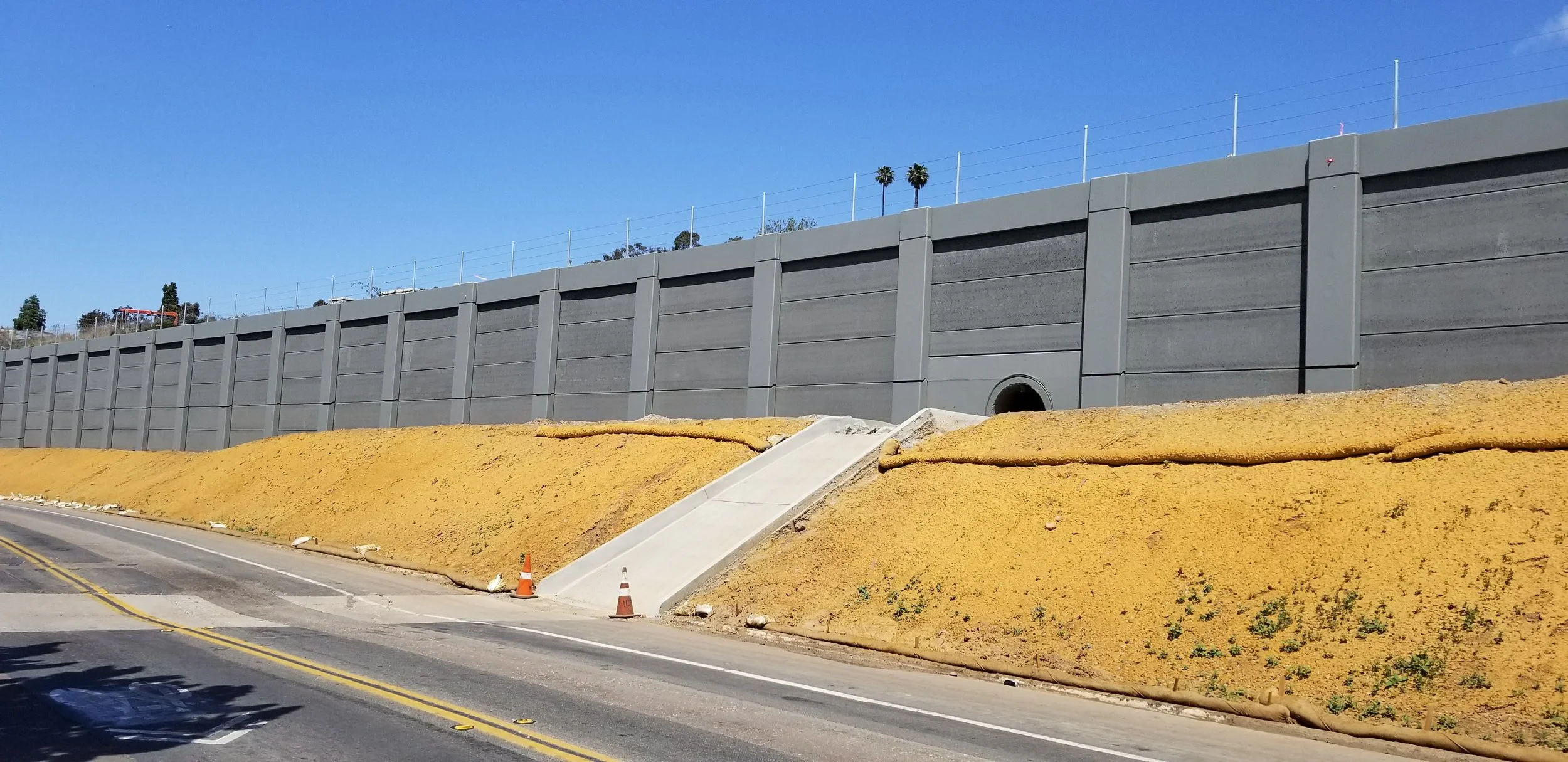

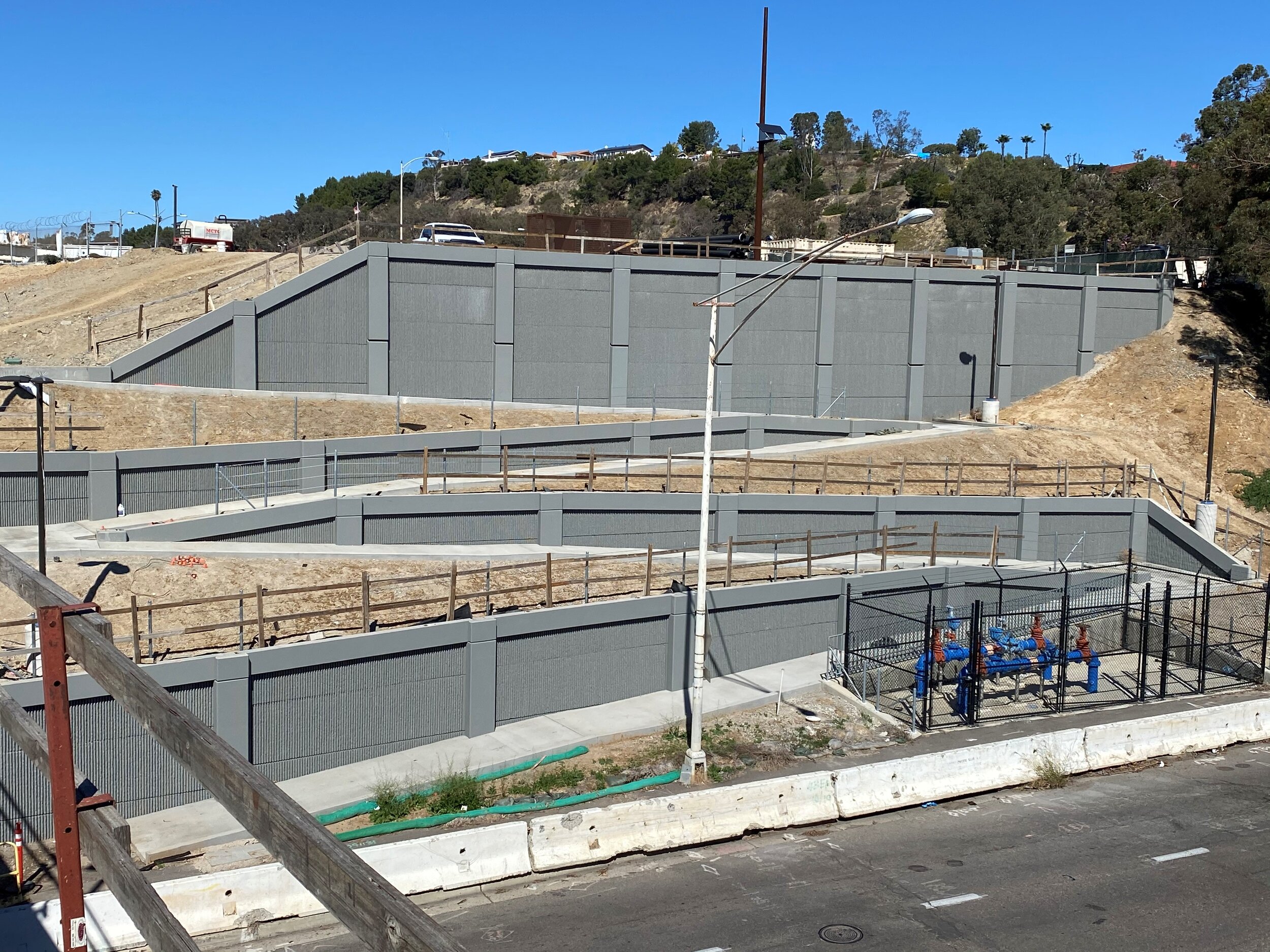

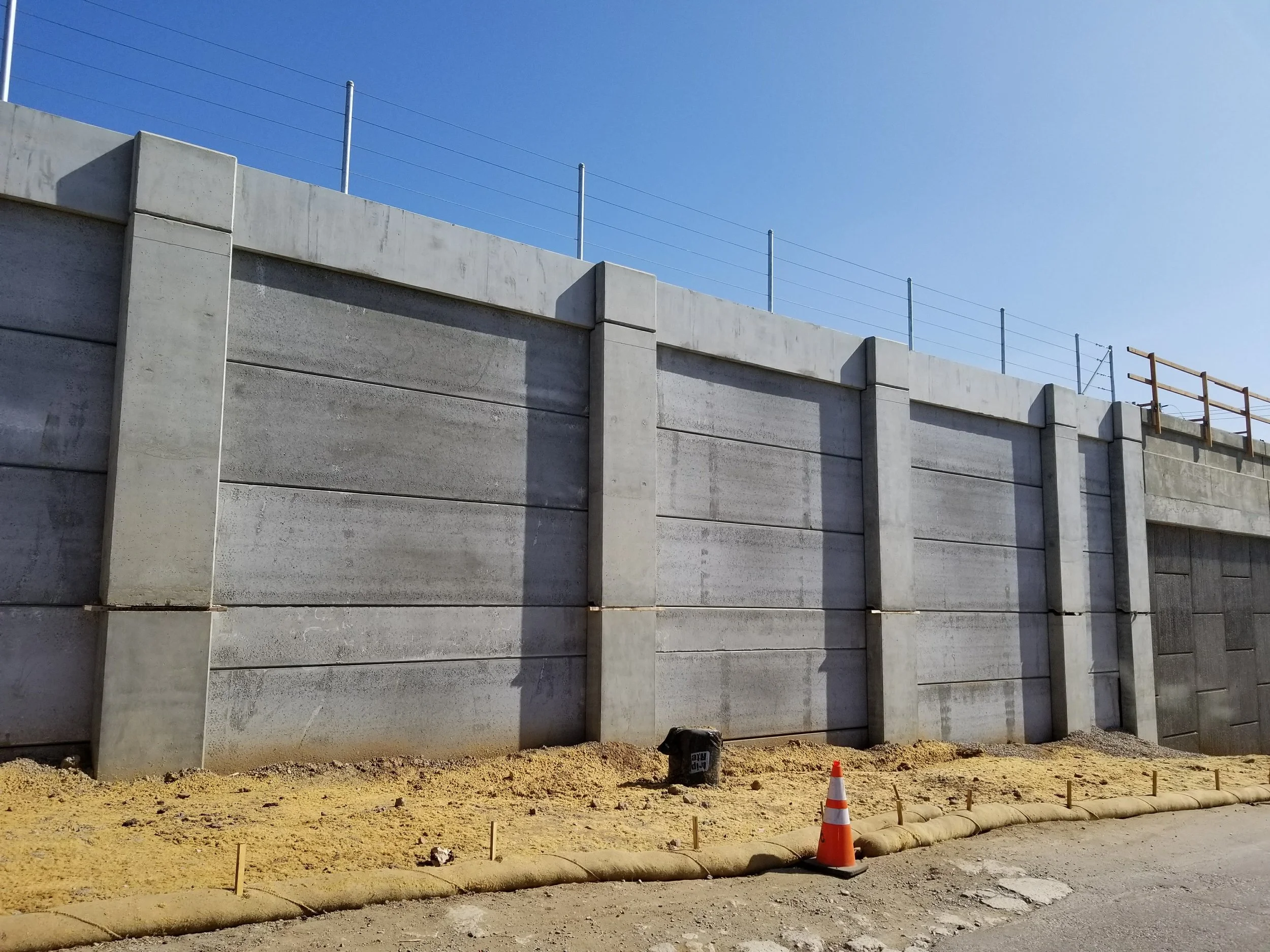

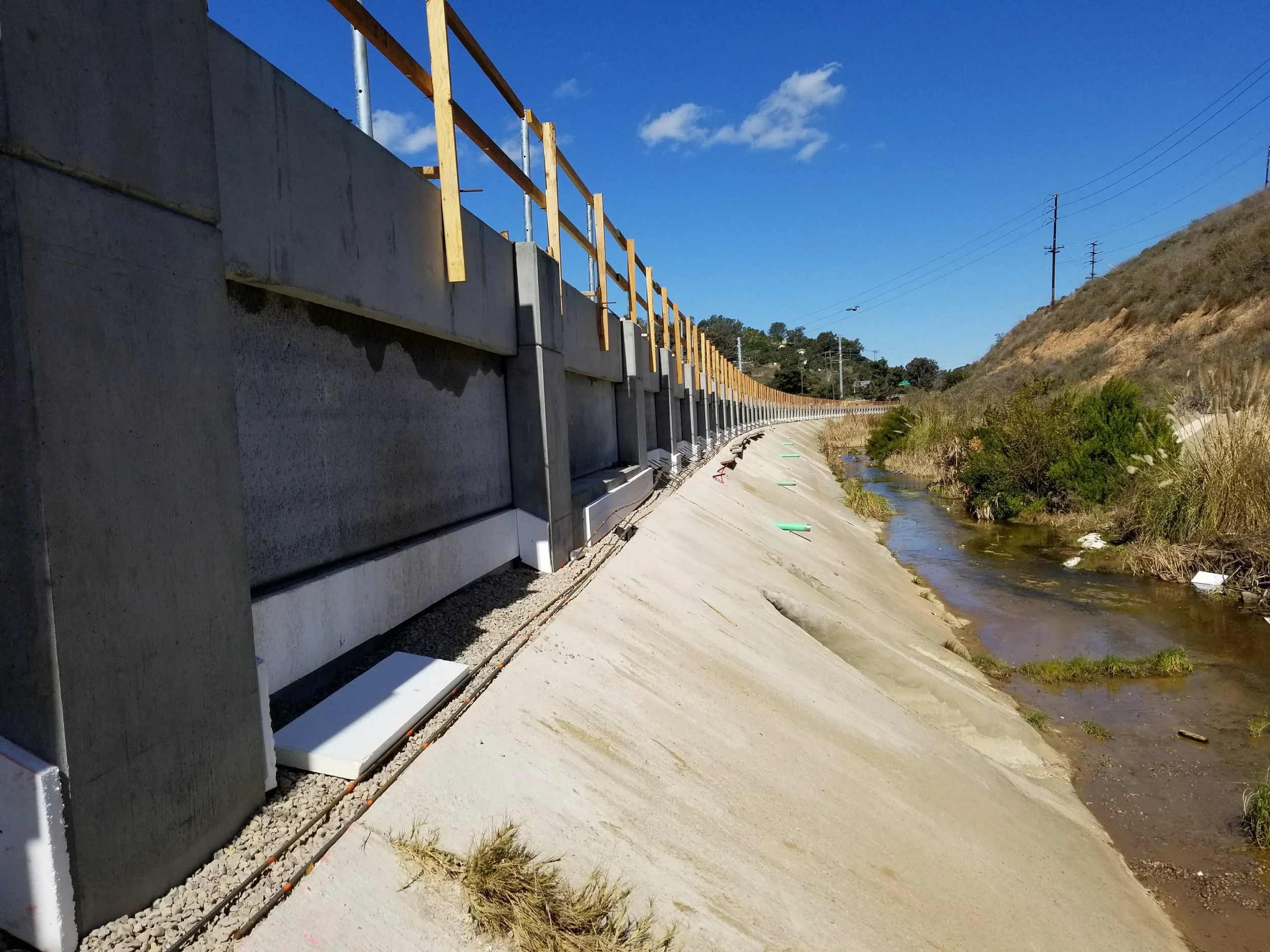

5 counterfort retaining walls totaling over 1.4 miles in length and 90,000 square feet. Walls were up to 2700’ long and 23’ high, support 4 rail road tracks designed for E-80 loading. Three walls were built within the Rose Creek Channel with extreme flood and scour potential. The unique precast panel retention system eliminated shoring and saved SANDAG and the contractor several million dollars with value engineering. The wall design was thoroughly reviewed by over 40 engineers, including engineers for SANDAG, NCTD, and the City of San Diego.
With our experience on both the owner’s side and the contractor’s side of projects we understand how to meet everyones needs fairly to keep a project moving. We can manage contracts, submittals, claims, or entire projects. Our time managing projects for large civil construction companies has taught us a lot.
Fallbrook Old Stage Road Waterline Replacement
Year Completed: 2018
Estimated contact value: $550,000
Project type: Underground waterline replacement

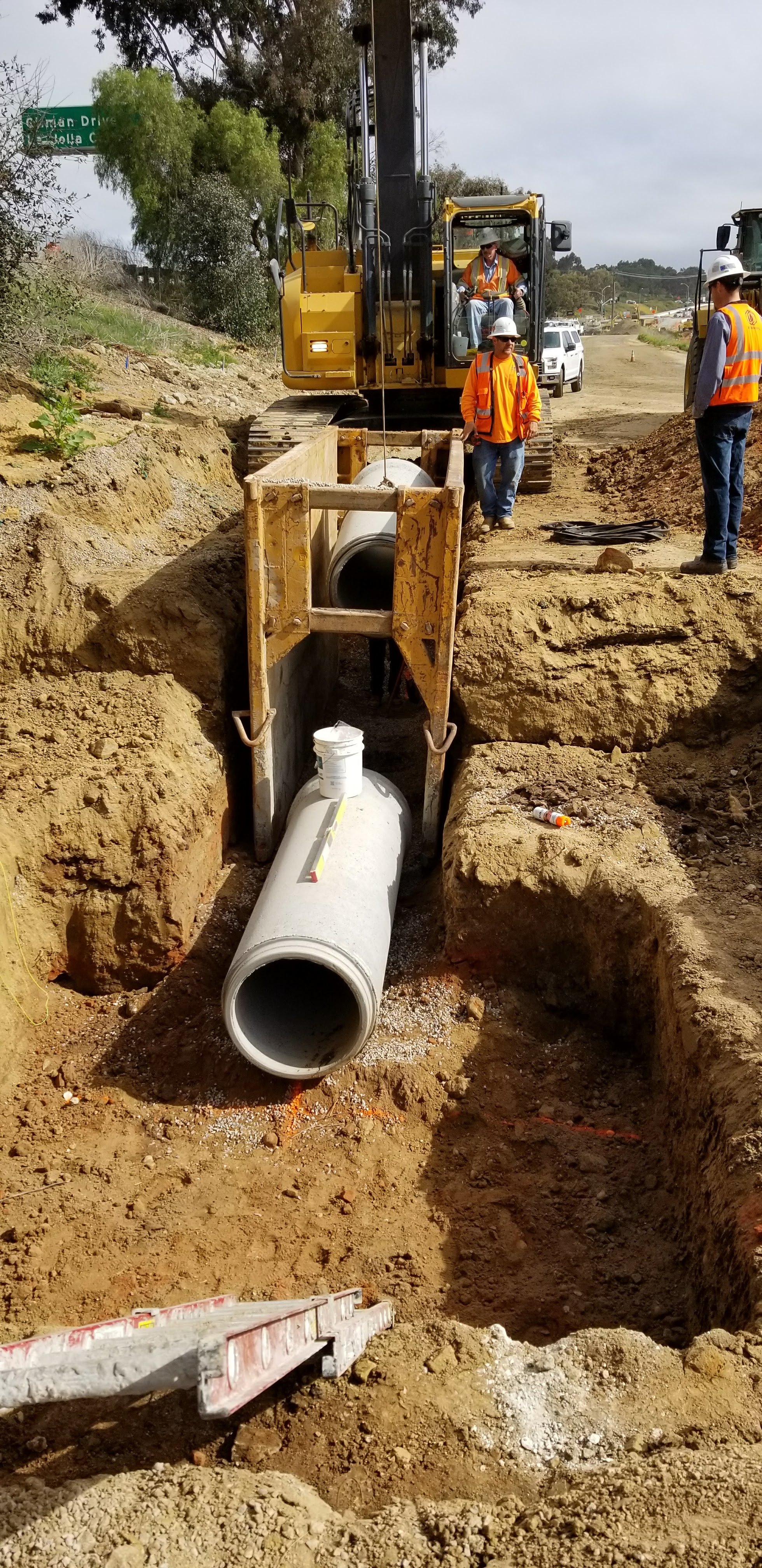

Replacement of 1,000 feet of 6 inch waterline with 6 inch CMLC, 7 services, 3 fire hydrants, highline and 5 tie-ins. Challenges included construction of waterline in close proximity to existing waterline and other utilities.
